The ABB ACS480-04-026A-4 is a compact, high-performance low-voltage AC drive designed for universal motor control applications, spanning industrial machinery, pumps, fans, conveyors, and material handling systems. As part of ABB’s ACS480 series, it combines user-friendly operation with advanced motor control features, making it suitable for both simple speed control and complex torque/speed regulation tasks.
Unlike specialized drives, the ACS480-04-026A-4 is engineered for versatility—supporting asynchronous (induction) motors and permanent magnet synchronous motors (PMSMs) without hardware modifications. Its 11 kW (15 HP) power rating (at 400V 3-phase input) and compact design make it ideal for machine builders and end-users seeking a balance between power, space efficiency, and energy savings. With built-in safety functions, communication protocols, and energy optimization features, it delivers reliable performance in demanding industrial environments.
- V/f Control: Ideal for simple applications like fans and pumps, providing stable speed regulation with minimal setup. The drive automatically adjusts voltage and frequency to maintain motor efficiency across speed ranges.
- Sensorless Vector Control: Delivers high torque at low speeds (e.g., 150% torque at 0.5 Hz) for applications like conveyors or mixers, where precise low-speed operation is critical. No external encoder is required, reducing wiring complexity.
- Closed-Loop Vector Control: With an optional encoder feedback module, the drive achieves ±0.01% speed accuracy—suitable for precision tasks such as CNC spindle control or synchronized conveyors.
- Energy-Saving Features: Includes a built-in energy optimizer that adjusts motor flux based on load, reducing energy consumption by up to 10% for partial-load applications (e.g., variable-speed pumps or fans).
- Automatic Energy Calculation: Monitors and displays energy savings in kWh compared to fixed-speed operation, helping users quantify efficiency gains for reporting or cost analysis.
- Safe Torque Off (STO): Certified to SIL 2/PL d, the STO function removes torque from the motor without disconnecting power to the drive. This enables safe maintenance or emergency stops, complying with machinery safety standards (EN ISO 13849-1).
- Comprehensive Protection: Guards against overcurrent, overvoltage, undervoltage, motor overload, and short circuits. The drive automatically shuts down or reduces output to prevent damage, with clear fault codes for quick troubleshooting.
- Built-in Modbus RTU: Enables easy connectivity to PLCs, HMIs, or SCADA systems via RS-485, supporting remote monitoring and control (e.g., adjusting speed setpoints from a central SCADA).
- Optional Fieldbus Modules: For industrial networks, add modules for Profibus DP, PROFINET, or Ethernet/IP to integrate with ABB AC 800M DCS or third-party automation systems.
- Plug-and-Play Commissioning: ABB’s Drive composer software (free) simplifies setup with guided wizards for motor parameters, control logic, and communication settings—reducing commissioning time by up to 50%.
- Space-Saving Book-Style Housing: The 145mm-wide design fits into tight control cabinets, making it ideal for machine builders with space constraints (e.g., packaging machines, small conveyors).
- Wide Temperature Range: Operates reliably from -10°C to +40°C (no derating) and up to +50°C (with derating), suitable for unheated/non-climate-controlled environments (e.g., warehouse conveyors, outdoor pump stations).
- Industrial Pumps & Fans: Controls variable-speed centrifugal pumps in water treatment plants or HVAC fans in commercial buildings. Energy optimizer reduces power consumption during low-demand periods (e.g., night-time fan operation).
- Conveyors & Material Handling: Regulates belt conveyor speed in distribution centers, using sensorless vector control to maintain constant torque at low speeds (e.g., when sorting fragile packages).
- Mixers & Agitators: Provides precise speed control for chemical mixers, with closed-loop vector mode ensuring consistent torque even when viscosity changes (e.g., batch mixing of adhesives).
- Machine Tools: Drives spindle motors in small CNC machines, leveraging closed-loop control for ±0.01% speed accuracy—critical for precision cutting or drilling.
- Power Wiring: Use 4mm² copper cables for input/output power connections (3-phase 400V). Ensure proper grounding (PE) with a dedicated ground wire (≥4mm²) to meet safety standards and reduce EMI.
- Motor Cable Length: For unshielded motor cables, limit length to ≤50m to avoid voltage reflections. For longer runs (50–100m), use shielded cables and enable the drive’s built-in dV/dt filter (via parameter 99.04) to protect motor windings.
- Enclosure Requirements: The standard IP20 rating requires installation in a protective cabinet. For dusty or wet environments (e.g., food processing), use an optional IP54 enclosure to prevent debris ingress.
- Motor Identification Run: Perform an automatic motor identification (parameter 99.05 = "ID Run") to let the drive learn motor parameters (resistance, inductance). This optimizes control performance, especially for vector modes.
- Speed Reference Setup: Configure the speed reference source (e.g., analog input 0–10V, Modbus, or digital inputs) via parameter 11.01. For remote control, map Modbus registers to speed setpoints using Drive composer.
- Overload Protection: Set motor overload parameters (30.02 = motor rated current, 30.03 = overload time) to match the motor’s nameplate data. This prevents motor damage during sustained high loads.
- STO Wiring: Connect STO signals to a safety relay or PLC safety output (e.g., emergency stop button). Verify STO functionality after installation by triggering the safety signal—ensure the motor coasts to a stop without torque.
- Fault Reset Handling: Configure fault reset behavior (parameter 21.03) to "manual" for critical applications (e.g., mixers with hazardous materials) to ensure operators investigate faults before restarting.
- Overcurrent Fault (F0001): Check for short circuits in the motor cable or a mechanically blocked load (e.g., jammed conveyor). Reduce acceleration time (parameter 22.02) if the fault occurs during startup.
- Overvoltage Fault (F0002): This often occurs during deceleration (regenerative braking). Extend deceleration time (parameter 22.03) or enable the drive’s built-in brake chopper (if equipped) to dissipate excess energy.
- Communication Errors: For Modbus issues, check baud rate (parameter 51.02) and parity settings (must match the master device). Use shielded communication cables and ground the shield at both ends to reduce noise.
- Periodic Inspections: Check cooling fans and heatsinks quarterly for dust buildup—clean with compressed air (low pressure) to prevent overheating. Replace fans every 5 years (or if noisy) to maintain cooling efficiency.
- Firmware Updates: Keep the drive’s firmware updated via Drive composer to access new features and bug fixes. Always back up parameters before updating.
- Environmental Protection: In high-vibration environments (e.g., near pumps), mount the drive on anti-vibration brackets. In humid areas, ensure cabinet relative humidity stays <85% (non-condensing) to prevent PCB corrosion

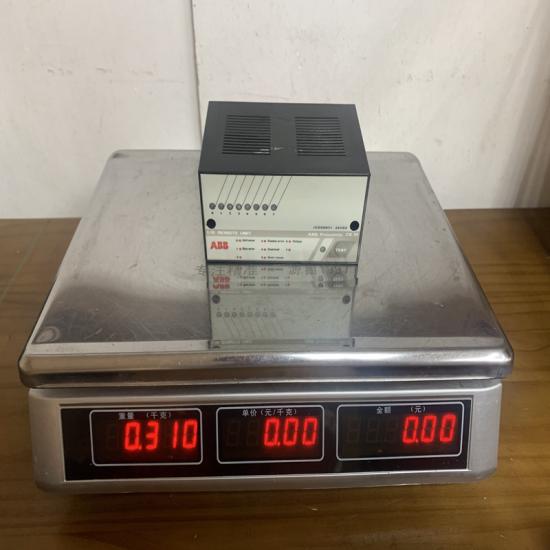

The structure and details of the product：
