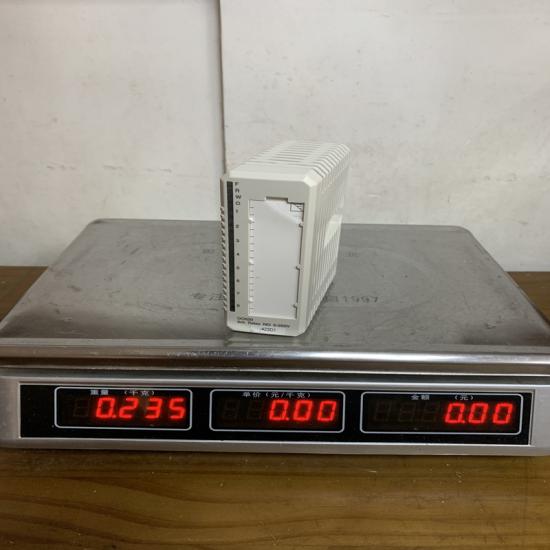

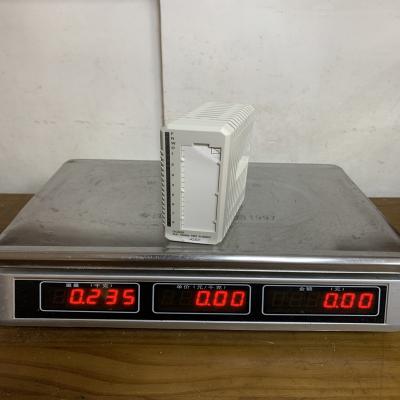

ABB 57310001-CX/5 Processor Board

1. Product Overview

The ABB 57310001-CX/5 Processor Board is a high-performance central processing module designed for ABB industrial control systems, robot controllers, and automation equipment. It handles core computation, real-time control, and multi-task management, serving as the key component for precise control, communication coordination, and complex calculations.

This board features industrial-grade components with strong interference immunity, long-term reliability, and a modular design for easy replacement, suitable for continuous operation in industrial environments.

2. Technical Specifications

3. Advantages and Features

Key Advantages:

1. High-speed processing: Supports complex logic and multi-tasking.

2. Reliable performance: Industrial-grade components for continuous operation.

3. Modular design: Facilitates quick replacement and maintenance.

4. Multiple communication interfaces: Connects with PLCs, I/O modules, and other devices.

5. Clear status monitoring: LEDs display system and fault conditions.

Main Features:

• High-performance microprocessor supporting real-time task scheduling.

• Built-in Flash storage for program and configuration data.

• Multiple bus interfaces suitable for distributed control systems.

• Modular slot design for system expansion and maintenance.

• Industrial-grade design with vibration and interference resistance.

4. Application Fields

• ABB industrial control systems and robot controllers

• Automated production lines and smart manufacturing equipment

• PLC and DCS core processing units

• Process automation and machinery control systems

• Mechatronic and distributed control systems

5. Precautions

1. Disconnect power before installation or removal.

2. Follow anti-static precautions to prevent circuit damage.

3. Ensure the supply voltage meets specifications.

4. Avoid use in high humidity, high vibration, or strong electromagnetic interference environments.

5. Regularly check LED indicators and module operation.

6. Use only ABB-certified components for maintenance and replacement.
