ABB 5366368-B I/O Power Module

1. Key Parameters

• Product Model: 5366368-B
• Order Code Reference: Typically paired with ABB AC500 I/O rack kits (e.g., 3ASD573006A8) or 800xA I/O power kits (e.g., 3ABD00029012) for procurement consistency
• Product Series: ABB AC500/800xA I/O System Dedicated Power Modules
• Core Function: Converts input power to regulated low-voltage DC for ABB I/O modules; provides overcurrent/short-circuit protection for I/O circuits; isolates I/O power from main control power to prevent ground loops; monitors power status for fault diagnostics
• Electrical Input Specifications:
  • Input Type: Dual-range AC input (selectable via DIP switch)
    • Range 1: 100V~120V AC (50Hz~60Hz)
    • Range 2: 200V~240V AC (50Hz~60Hz)
  • Input Current: 3A (max at 100V AC); 1.5A (max at 240V AC)
  • Input Protection:
    • 5A thermal-magnetic circuit breaker (manual reset; triggers on overload/short-circuit)
    • Surge protection (IEC 61000-4-5: ±2kV contact discharge, ±4kV air discharge)
    • EMC Filter (Class B; reduces conducted/emitted noise, compliant with EN 61000-6-2)
• DC Output Specifications:

  Output Channel	Voltage Rating	Continuous Current	Peak Current (10s)	Target ABB Components
  +5V DC	5V ±1%	4.0A	5.0A	AC500 digital I/O modules (e.g., DI810), 800xA I/O communication chips
  +24V DC	24V ±2%	2.5A	3.5A	AC500 analog I/O modules (e.g., AI830), sensor power (4~20mA transmitters)



  • Output Ripple & Noise: ≤20mVpp (for +5V); ≤30mVpp (for +24V)
  • Output Protection: Each channel features electronic current limiting and short-circuit shutdown (<3ms response time)
• Electrical Safety Features:
  • Isolation: 3kVrms (between input power and output channels; between +5V and +24V channels)
  • Grounding: Dedicated protective earth (PE) terminal (compliant with IEC 60364); low-resistance (<0.5Ω) grounding path
  • Over-temperature Protection: Thermal sensor (triggers at 75℃; reduces output current to 50% of rated value to prevent component damage)
• Mechanical Specifications:
  • Form Factor: Rack-mounted (compatible with ABB AC500 I/O racks and 800xA I/O cabinets)
  • Dimensions (W×H×D): 35mm × 120mm × 180mm (custom fit for ABB standard I/O rack slots)
  • Mounting: Slot-mounted (secures to I/O rack backplane via edge connectors; no additional screws)
  • Weight: Approximately 420g
  • LED Indicators (front panel):
    • Power (PWR): Green (module powered on); Red (input power fault/undervoltage)
    • +5V Status (5V): Green (output normal); Red (overcurrent/short-circuit)
    • +24V Status (24V): Green (output normal); Red (overcurrent/short-circuit)
    • Temperature (TEMP): Green (board temp <60℃); Amber (60℃~75℃ warning); Red (>75℃ protection active)
• Environmental Ratings:
  • Operating Temperature Range: -20℃~+60℃ (-4℉~140℉)
  • Storage Temperature Range: -40℃~+85℃ (-40℉~185℉)
  • Humidity Tolerance: ≤95% RH (non-condensing, 40℃; suitable for damp industrial settings)
  • Vibration Resistance: 10~500Hz, 1.5g acceleration (IEC 60068-2-6; no solder joint failure)
  • Shock Resistance: 20g acceleration (11ms duration, IEC 60068-2-27; maintains structural integrity)
  • Cooling Method: Passive convection (no fans; reduces dust ingress and maintenance)
• Compliance Standards: IEC 61131-2 (industrial control equipment), EN 61000-6-2 (EMC immunity), UL 508 (industrial safety), CSA C22.2 No. 14, CE, RoHS

2. Key Features

• ABB I/O System Exclusivity: Custom-engineered for ABB AC500 I/O racks and 800xA I/O modules—ensures perfect electrical matching with ABB’s I/O power requirements (e.g., +5V for digital logic, +24V for analog sensors); eliminates compatibility risks from generic power modules (e.g., voltage mismatches, insufficient current).
• Dual-Range AC Input: Selectable 100V~120V/200V~240V AC input (via DIP switch) supports global deployment—no hardware modifications required for use in North America (120V AC), Europe (230V AC), or Asia (220V AC), simplifying international project logistics.
• Ultra-Low Output Ripple: ≤20mVpp ripple on +5V output and ≤30mVpp on +24V output minimizes electrical noise, protecting sensitive I/O components (e.g., analog-to-digital converters in AI830 modules) from signal distortion—critical for precision applications like process temperature monitoring.
• Fast Output Protection (<3ms): Each output channel’s overcurrent/short-circuit protection triggers in under 3ms, isolating faulty circuits to prevent damage to expensive ABB I/O modules (e.g., DI810, AI830)—reduces repair costs and unplanned downtime.
• 3kVrms High Isolation: Industrial-grade isolation between input power and output channels, and between +5V/+24V circuits, prevents ground loops and voltage transients from disrupting I/O signals—essential for reliable operation in factories with unstable power grids.
• Passive Convection Cooling: Fanless design eliminates dust accumulation (a leading cause of power module failure in industrial settings) and removes fan maintenance requirements—extends module service life to ≥8 years under normal operation.
• Intuitive Status Monitoring: Front-panel LEDs for input power, each output channel, and temperature provide real-time visibility of module health—technicians can quickly identify issues (e.g., a shorted +24V sensor circuit) without specialized test equipment, cutting troubleshooting time.

3. Application Fields

• ABB AC500 PLC I/O Rack Power Supply: Primary application—energizes I/O modules for AC500-based control systems:
  • Manufacturing Automation: Powers AC500 I/O racks in automotive assembly lines; +5V output energizes DI810 digital input modules (monitoring conveyor safety interlocks), while +24V supplies AI830 analog modules (tracking robot joint temperature)—ensures seamless I/O communication with AC500 CPUs.
  • Electronics Production: Supplies power to AC500 I/O racks for SMT (Surface Mount Technology) machines; low ripple (+5V ≤20mVpp) protects digital I/O circuits from noise, ensuring accurate detection of PCB component placement.
• ABB 800xA DCS I/O Module Power: Supports I/O components in process control systems:
  • Chemical & Petrochemical Plants: Energizes 800xA analog I/O modules (e.g., for reactor pressure sensors, 4~20mA) and digital I/O modules (for valve status monitoring); 3kVrms isolation prevents ground loops from disrupting process data, complying with safety standards (e.g., SIL 2).
  • Water & Wastewater Treatment: Powers 800xA I/O modules for flow meters (AI) and pump status switches (DI); +24V output supplies sensor power, while over-temperature protection withstands heat in outdoor I/O cabinets.
• Harsh-Environment I/O Systems: Enables reliable power delivery in challenging settings:
  • Mining Auxiliary Equipment: Supplies power to AC500 I/O racks for mine ventilation fan sensors; wide temperature range (-20℃~+60℃) adapts to underground conditions, while surge protection resists grid transients from mining equipment.
  • Steel Production: Powers 800xA I/O modules for rolling mill temperature sensors (AI) and brake actuators (DO); passive cooling avoids dust ingress from steel dust, preventing module overheating.
• Legacy I/O System Upgrades: Modernizes older ABB automation setups:
  • Factory Retrofits: Replaces obsolete power modules in legacy AC500 I/O racks (e.g., paired with AC500-CPU210); maintains compatibility with existing I/O modules, extending system lifespan without full I/O rack replacement.
  • Process Control Modernization: Upgrades power supplies for 800xA I/O cabinets in aging chemical plants; dual-range input supports grid upgrades (e.g., switching from 120V to 240V AC), avoiding costly rewiring.

4. Precautions

• ABB I/O System Exclusivity: Use exclusively with ABB AC500 I/O racks and 800xA I/O modules. Never install in non-ABB I/O systems or incompatible ABB controllers (e.g., IRC5 robots)—electrical mismatches (e.g., backplane pinout, output current capacity) will damage the module or I/O components.
• High-Voltage Safety:
  • Disconnect input AC power and discharge residual capacitance (wait 5 minutes) before handling the module—input AC voltage (up to 240V) poses severe shock risks; never touch input terminals during operation.
  • Ensure the module’s PE terminal is securely connected to the I/O rack’s protective earth bus—poor grounding reduces isolation effectiveness and increases EMC susceptibility.
• Input Voltage Selection:
  • Set the DIP switch to match the input AC voltage (100V~120V or 200V~240V) before powering on—applying 240V to a 100V~120V setting will destroy the module’s input circuitry, voiding the warranty.
  • Verify input voltage with a calibrated multimeter before connecting—grid voltage fluctuations (e.g., >10% of rated) may trigger the circuit breaker or reduce output regulation accuracy.
• Output Load Limits:
  • Do not exceed continuous current ratings (4.0A for +5V, 2.5A for +24V). Calculate total I/O load (e.g., number of DI/AI modules) to avoid overloading—overcapacity triggers current limiting, causing I/O modules to reset or malfunction.
  • Avoid daisy-chaining external devices to the +24V output (e.g., non-ABB sensors)—additional loads may exceed current limits and disrupt power to critical ABB I/O modules.
• Environmental Limitations:
  • Avoid operating above +60℃ or below -20℃—high temperatures activate over-temperature protection (reducing output current), while low temperatures increase output ripple (exceeding 30mVpp) and disrupt analog signals.
  • Install the I/O rack in a dust-tight, well-ventilated cabinet—blocked airflow increases the module’s internal temperature, shortening capacitor life and triggering amber TEMP LEDs.
• Maintenance Checks: Inspect quarterly (with power disconnected):
  • Verify all LEDs show normal status (PWR green, +5V/+24V green, TEMP green) during operation.
  • Clean the module’s edge connectors and I/O rack backplane with compressed air (no moisture)—dust buildup increases contact resistance, causing intermittent power loss to I/O modules.
  • Measure output voltage accuracy with a calibrated multimeter—ensure +5V is within ±1% (4.95V~5.05V) and +24V within ±2% (23.52V~24.48V); drift beyond specs indicates component degradation, requiring module replacement.
  • Test the circuit breaker by simulating a minor overload (e.g., 5A for +5V)—confirm it trips and cuts input power, protecting I/O modules from damage.

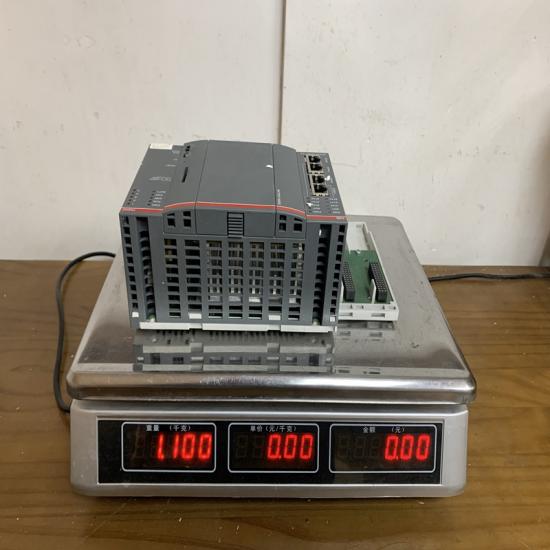

The structure and details of the product：
