ABB 520PSD01 Power Supply Unit

Product Overview

The ABB 520PSD01 is a high-performance power supply unit designed for industrial automation applications, providing reliable power distribution for control systems and field devices.

Technical Specifications

General Parameters

• Brand: ABB

• Model: 520PSD01

• Type: Industrial power supply unit

• Input Voltage: 100-240V AC (50/60Hz)

• Output Voltage: 24V DC

• Output Current: 5A (120W)

• Efficiency: >85%

• Protection Rating: IP20 (for cabinet installation)

• Cooling: Convection cooling (fanless design)

• Dimensions: 125×124×117mm (W×H×D)

• Weight: 1.4kg

Electrical Characteristics

• Input Range: 85-264V AC (47-63Hz)

• Output Regulation: ±1%

• Ripple & Noise: <150mVpp

• Overvoltage Protection: 28-35V DC

• Short Circuit Protection: Auto-recovery

• Isolation Voltage: 3000V AC input-output

Key Features

1. Wide Input Range: Operates from 85-264V AC without manual adjustment

2. High Efficiency: >85% efficiency reduces energy costs

3. Reliable Operation: MTBF >300,000 hours at 40°C

4. Protection Features: Overvoltage, overload, and short circuit protection

5. Industrial Design: Robust metal housing with DIN rail mounting

6. Noise Immunity: Meets EN 61000-6-2 for industrial environments

7. Certifications: UL 508, CE, cULus, EN 60950-1, EN 61000-6-2/4

Application Fields

1. PLC Systems: Power supply for ABB and other industrial controllers

2. Process Automation: Distributed I/O systems and field devices

3. Machine Control: CNC equipment and production machinery

4. Packaging Lines: Conveyor and packaging equipment

5. Material Handling: Automated storage and retrieval systems

Installation and Operation Notes

1. Mounting: Install vertically on DIN rail (EN 60715) with minimum 10mm clearance above/below

2. Environment: Operate in 0-60°C ambient (derate above 40°C)

3. Wiring: Use copper conductors only (min 0.5mm² for output)

4. Safety: Disconnect power before servicing

5. Maintenance: Keep ventilation openings clear of debris

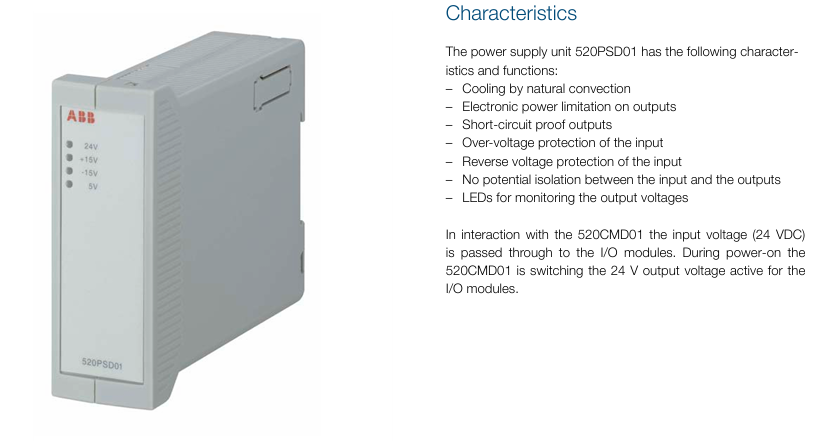

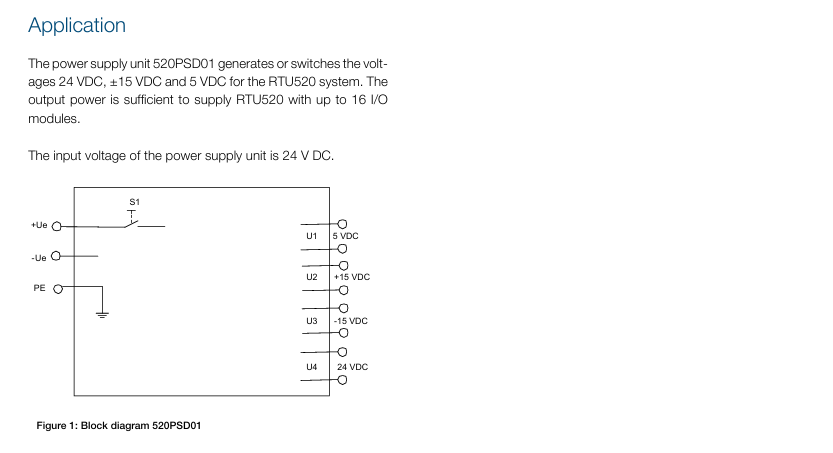

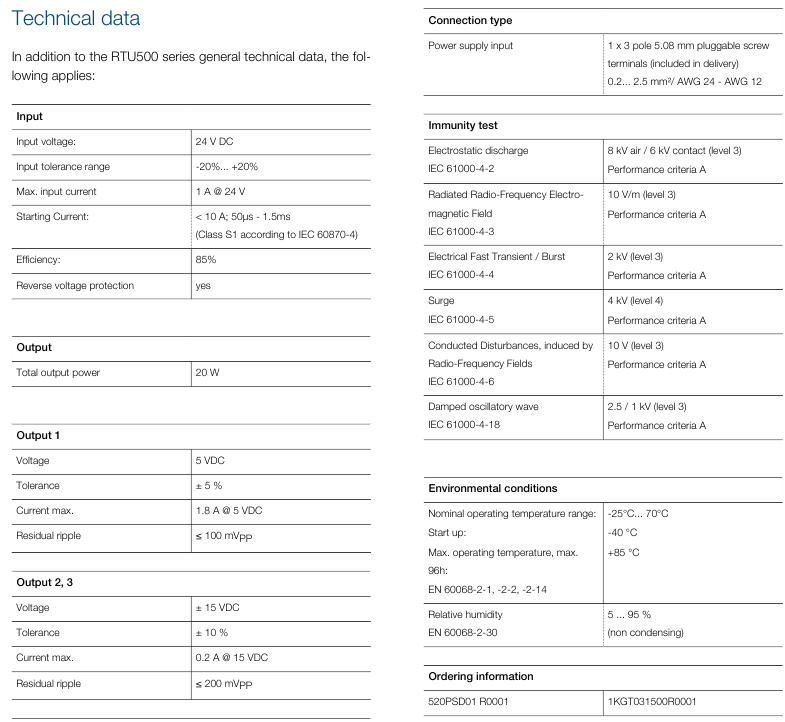

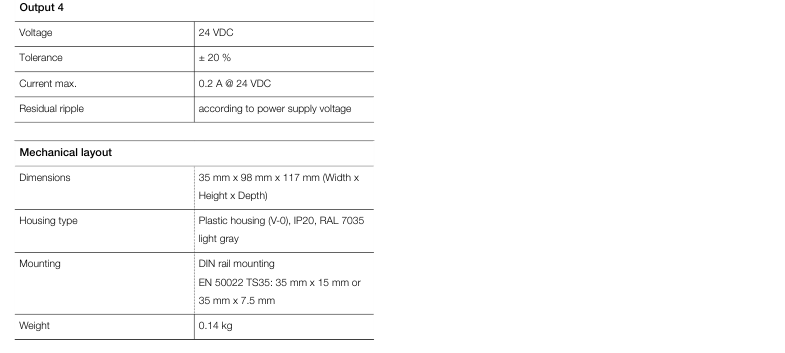

The structure and details of the product：
