ABB 3HAA3563-AAA Teach Pendant Control Board

Introduction

The ABB 3HAA3563-AAA Teach Pendant Control Board is the main control PCB inside ABB robot teach pendants. It is responsible for handling operator input, emergency stop, enabling switch signals, touch screen/display control, and communication with the robot controller, making it a critical component for human-machine interaction.

Functions

• Signal Processing – Collects and processes key, switch, and touchscreen inputs.

• Safety Control – Manages emergency stop and three-position enabling switch.

• Communication – Interfaces with robot controller (e.g., IRC5).

• Display Control – Drives LCD/touchscreen modules.

• HMI Core – Acts as the main operator–robot communication bridge.

Technical Specifications (Typical Reference)

• Model: 3HAA3563-AAA

• Function: Teach Pendant Control Board

• Power Supply: 24 VDC (internal from teach pendant)

• Interfaces:

  • Key/switch input ports

  • Emergency stop & enabling switch interface

  • LCD/touchscreen display connection

  • Communication interface to controller (Ethernet/RS232/Fieldbus)

• Operating Temperature: 0 ~ +55 ℃

• Storage Temperature: -20 ~ +70 ℃

• Mounting: Integrated inside ABB teach pendant

Features & Benefits

1. High Reliability – Ensures stable teach pendant operation.

2. Safety – Integrated handling of E-stop and enabling signals.

3. Compatibility – Supports ABB IRC5 controllers.

4. Modular Design – Easy replacement and servicing.

5. Industrial Quality – Strong EMC immunity for factory environments.

Applications

• Industrial Robots – ABB robot teaching & programming

• Automation Lines – HMI & safety operation

• Maintenance & Commissioning – Local operation interface

• Education & Training – Robotics teaching platform

Installation & Maintenance Notes

1. Replace only by qualified personnel to avoid PCB damage.

2. Keep connectors clean to ensure reliable operation.

3. Check E-stop and enabling switch functions regularly.

4. Use identical replacement models to ensure compatibility.

5. Use ESD protection during handling and storage.

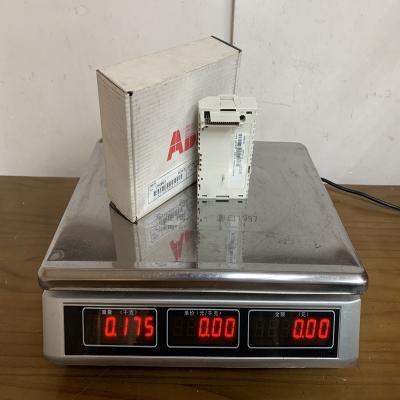

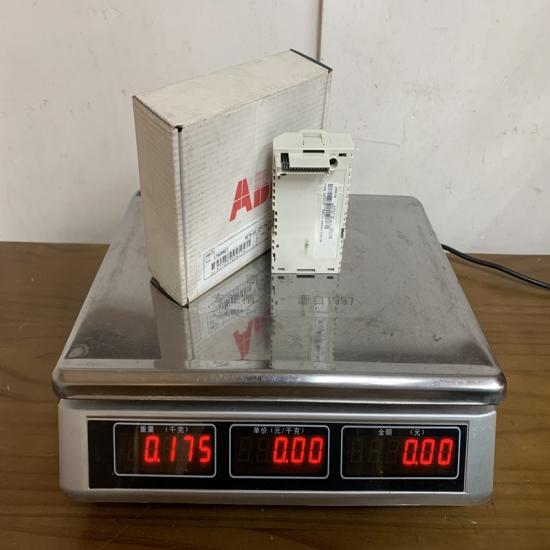

The structure and details of the product：
