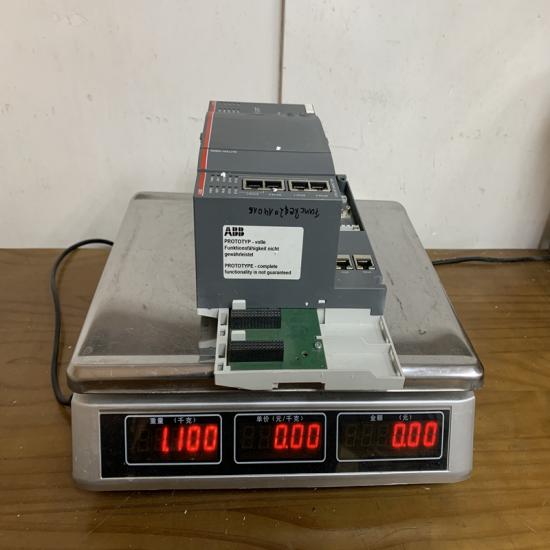

- ABB 3BDH000022R1 Ethernet Module

  ABB 3BDH000022R1 is a high-reliability industrial Ethernet module designed for ABB automation control systems. It serves as a key communication bridge between industrial devices and Ethernet networks, focusing on stable data transmission, multi-protocol compatibility, and harsh environment adaptation, suitable for scenarios requiring real-time, large-volume data interaction between upper-level monitoring systems and lower-level control devices in industrial sites.

  Core Product Features
  - Ethernet Communication Function: Supports 10/100Mbps adaptive Ethernet communication, enabling bidirectional data transmission between ABB controllers (e.g., PM860 series) and SCADA/PLC systems. It can transmit device operating parameters, control commands, and fault information in real time, ensuring the integrity and timeliness of industrial control data.
  - Protocol Compatibility: Natively supports industrial Ethernet protocols such as Modbus TCP and Profinet IO, and is compatible with ABB’s proprietary communication protocols. It can seamlessly connect to different types of industrial networks without additional protocol conversion devices, reducing network deployment complexity.
  - Network Redundancy Support: Built-in network redundancy logic, supporting ring network redundancy (e.g., Profinet MRP) and dual-port backup. When a single network link fails, it can switch to the standby link within 100ms, avoiding data transmission interruptions caused by network faults.
  Key Parameters
  - Communication Interface: 2 RJ45 Ethernet ports (10/100Mbps auto-negotiation), supporting full-duplex/half-duplex mode; 1 RS-485 serial port (for local configuration and debugging, supporting Modbus RTU).
  - Data Transmission: Maximum data transmission rate 100Mbps, average communication delay ≤5ms (under full load), packet loss rate <0.001% (in stable network environment).
  - Power Supply: 24V DC single power input, working voltage range 18-30V DC, power consumption ≤3W (full load).
  - Environmental Adaptability: Working temperature -30°C to +70°C, humidity 5%-95% (non-condensing); anti-interference performance complies with IEC 61000-6-4 (industrial electromagnetic compatibility standard).
  - Physical Size: 95mm×70mm×25mm, compatible with ABB standard DIN rail mounting and backplane slot installation, suitable for integrated deployment in industrial control cabinets.
  Core Advantages
  - Stable Data Transmission: Adopts industrial-grade Ethernet chips and anti-interference circuit design, with built-in data error correction and retransmission mechanisms. It can resist electromagnetic interference from high-voltage equipment and motor drives in industrial sites, ensuring low-latency, low-packet-loss data transmission—critical for real-time control scenarios (e.g., power plant turbine monitoring).
  - Strong Device Compatibility: Designed with ABB’s standard mechanical and electrical interfaces, it can be directly integrated with ABB controllers, I/O modules (e.g., 086444-005 circuit board), and human-machine interfaces (HMI). It also supports interconnection with third-party industrial devices (e.g., Siemens PLCs) that comply with Modbus TCP/Profinet protocols, improving system expansion flexibility.
  - Rugged Industrial Design: Uses flame-retardant industrial-grade plastic enclosures (UL94 V-0 grade) and gold-plated pin headers, with anti-vibration performance (10-500Hz, 2g acceleration) and anti-shock performance (1500m/s², 11ms duration). It can operate reliably in dusty, high-vibration factory workshops or outdoor industrial sites.
  Typical Applications
  - Industrial Automation Networks: In automotive assembly lines, it connects ABB robotic controllers and production line PLCs to the Ethernet, realizing real-time transmission of robot motion parameters and production line status data, and supporting remote monitoring and parameter adjustment of equipment by the upper-level SCADA system.
  - Power System Monitoring: In substations, it connects ABB medium-voltage control devices (e.g., 5SHX1060H001 controller) to the power monitoring network, transmitting electrical parameters (voltage, current, power factor) and device fault signals to the central monitoring system, enabling remote fault diagnosis and maintenance.
  - Process Industry Networking: In chemical plants, it connects distributed control system (DCS) modules and on-site sensors/actuators to the Ethernet, realizing centralized management of production process data (e.g., reactor temperature, pipeline pressure) and ensuring synchronous execution of control commands across the entire production line.
  Usage Precautions
  - Installation: Install on a DIN rail or ABB standard backplane, keeping a distance of ≥5cm from heat-generating devices (e.g., power modules) to avoid overheating. Use shielded Ethernet cables (CAT5e or above) and ground the cable shield layer to enhance anti-interference performance.
  - Configuration: Use ABB Configuration Studio software to set network parameters (IP address, subnet mask, gateway) and communication protocols; enable network redundancy function according to on-site network architecture (e.g., configure ring network parameters for ring network deployment).
  - Maintenance: Regularly check the Ethernet port for loose connections or dust accumulation (clean with compressed air if necessary); monitor network traffic and error packets via the module’s built-in status indicators or configuration software. Avoid hot-plugging the module during operation to prevent damage to the network interface.
