ABB 1SVR040008R1300 Monitoring Relay

• • • • • •

            ABB 1SVR040008R1300 Monitoring Relay / Signal Converter (CC-U/V Voltage Monitoring Module)







            ---

            Product Description

            The ABB 1SVR040008R1300 is a CC-U/V series universal voltage monitoring relay / signal converter, used to measure and convert AC/DC voltage signals into standardized analog output signals for control systems.

            It is not a simple relay—it is a measuring converter (signal conditioning + monitoring device) used in automation and electrical monitoring systems.

            ---

            Key Specifications

            • Brand: ABB
            • Model: 1SVR040008R1300
            • Series: CC-U/V
            • Type: Voltage monitoring relay / signal converter
            • Function: RMS voltage measurement + signal conversion
            • Input Range: 0–600 V AC (multi-range selectable)
            • Output: Analog signal (0–10 V or 0–20 mA / 0–55 mA depending config)
            • Supply Voltage: 24–48 V DC or 24 V AC
            • Mounting: DIN rail (22.5 mm module width)
            • Isolation: 3-way galvanic isolation
            • Adjustment: DIP switches + front calibration knobs

            ---

            What it actually does

            This device is used to:

            • Measure AC or DC voltage in industrial systems
            • Convert voltage into standardized PLC analog signals
            • Provide electrical isolation between high-voltage field and control system
            • Monitor power lines or machine voltage conditions
            • Feed voltage data into PLC / SCADA systems



            ---

            System Role (Simple)

            High voltage signal (0–600V)
            → ABB CC-U/V module (this device)
            → isolated measurement + conversion
            → PLC analog input / SCADA system

            ---

            Key Features

            • True RMS voltage measurement
            • Works with AC, DC, and distorted waveforms
            • Multi-range selectable input (0–600V)
            • Analog output for PLC integration
            • 3-way electrical isolation (high safety)
            • DIN rail compact design (22.5 mm)
            • Adjustable gain and offset

            ---

            Typical Applications

            • Power monitoring systems
            • Electrical distribution panels
            • Industrial automation cabinets
            • Energy measurement systems
            • Machine voltage monitoring
            • SCADA data acquisition systems

            ---

            Advantages

            • Safe isolation between high voltage and control system
            • Accurate RMS measurement
            • Flexible configuration via DIP switches
            • Compatible with PLC analog input modules
            • Compact and easy DIN rail installation
            • Works with distorted or non-sinusoidal signals

            ---

            Important Notes

            • Not a standard relay (no switching power function) ❌
            • Not PLC CPU ❌
            • Not I/O module ❌
            • It is a signal converter / monitoring relay device ✔

            ---

            Precautions

            • Must correctly select input voltage range (0–600V settings)
            • Incorrect DIP switch setting can cause wrong scaling
            • Requires proper grounding for accurate measurement
            • Used in high-voltage environments → installation should be by qualified personnel
            • Output signal must match PLC analog input type

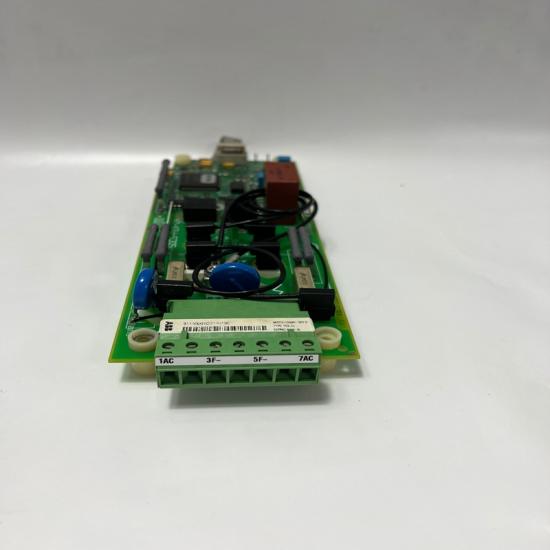

The structure and details of the product：
