ABB 1SFA616950R1013 Lighting unit with transformer

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

1. Product Description

The ABB 1SFA616950R1013 Lighting Unit with Transformer is an integrated lighting module with a transformer designed to safely convert mains voltage into low-voltage power for lighting devices. It is suitable for residential, commercial, and industrial lighting systems, featuring high reliability, low power consumption, and long service life. Its compact design allows panel or enclosure installation and is compatible with both direct control and smart lighting systems.

2. Technical Specifications

• Model: 1SFA616950R1013

• Type: Lighting Unit with Transformer

• Input Voltage: AC 230 V ±10%, 50/60 Hz

• Output Voltage: DC 12 V or 24 V (depending on version)

• Rated Power: 10–50 W (depending on version)

• Efficiency: ≥ 85%

• Mounting: Panel mount / Embedded mount

• Operating Temperature: -20 ℃ to +50 ℃

• Protection Class: IP20

• Insulation Class: Class II

• Lifespan: ≥ 50,000 hours

• Standards Compliance: IEC 61347, CE

3. Advantages and Key Features

• Integrated transformer design
  Safely converts mains voltage to low-voltage output, protecting lighting devices and user safety.

• High efficiency and low power consumption
  High conversion efficiency reduces energy loss and lowers electricity cost.

• Long lifespan and reliability
  Lifetime ≥ 50,000 hours, suitable for long-term continuous operation.

• Compact installation
  Can be installed directly on panels or embedded in enclosures, saving space.

• Wide compatibility
  Suitable for driving various low-voltage lighting devices such as LEDs and halogen lamps.

4. Typical Applications

• Low-voltage lighting in commercial and office buildings

• Residential indoor lighting systems

• Lighting in exhibition halls, malls, and public buildings

• Internal lighting for industrial control panels

• Hotels, restaurants, and entertainment venues

• Smart lighting and automation systems

5. Precautions

• Ensure power is disconnected before installation to avoid electric shock.

• Verify input voltage and output load compatibility to prevent overload or damage.

• Avoid installation in humid, dusty, or corrosive environments.

• Regularly inspect wiring terminals and insulation for long-term safe operation.

• Installation and maintenance should follow ABB safety guidelines and electrical standards.

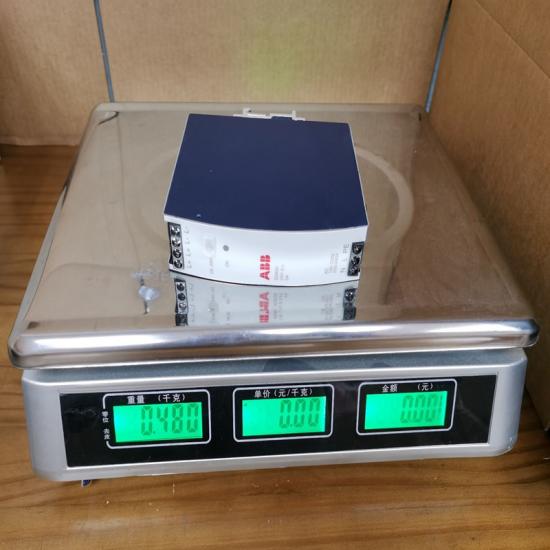

The structure and details of the product：
