The ABB 1SAJ510000R0400 is a versatile industrial motor controller engineered for precision control, comprehensive protection, and seamless integration of AC motors in diverse automation systems—specifically optimized for applications requiring flexible motor management, robust fault prevention, and multi-protocol communication (e.g., conveyor systems, pumps, fans, and general machinery in manufacturing, logistics, and building automation). It functions as an "all-in-one motor management solution," combining variable speed control, real-time monitoring, and advanced protection mechanisms to ensure efficient, safe, and reliable motor operation. Designed to comply with global industrial standards and support a wide range of motor types, it balances performance, adaptability, and durability for universal motor control needs. Below is its detailed specification:
- Product Model: 1SAJ510000R0400
- Product Series: ABB Universal Motor Controllers (AC Motor Control & Protection)
- Core Function: Provides variable speed control for AC motors; delivers comprehensive protection (overcurrent, overload, phase loss, etc.); enables real-time motor diagnostics; supports multi-protocol communication; integrates with PLC/DCS systems; offers user-friendly configuration via software or front-panel interface
- Control & Protection Specifications:
- Power Range: 0.75kW~15kW (230V single-phase); 0.75kW~30kW (400V three-phase)
- Speed Control: V/f control, sensorless vector control (±0.5% speed accuracy)
- Torque Control: 150% rated torque at 0.5Hz (sensorless vector mode) | Supports 90% of industrial AC motor types; sensorless vector control ensures precise speed/torque regulation for variable-load applications (e.g., conveyors with varying payloads) |
| Protection Features | - Overcurrent: 1.5×~10× rated current (adjustable trip time)
- Overload: Class 10/20/30 thermal protection (adjustable)
- Additional: Phase loss, phase imbalance, under/overvoltage, overheating, ground fault (30mA~1A), locked rotor
- Fault Response: Configurable (stop, alarm, coast-to-stop) | Comprehensive protection reduces motor downtime by 40% vs. basic controllers; ground fault detection enhances operator safety in wet environments (e.g., food processing) |
- Power & Output Specifications:
- Frequency: 50Hz/60Hz (±5%)
- Power Factor: ≥0.95 (at full load)
- Efficiency: ≥97% (at 50%~100% load) | Wide voltage range suits global installations; high efficiency reduces energy consumption in 24/7 operations (e.g., water pump stations) |
| Output | - Current: 3A~63A (continuous); 150% for 60s (overload)
- Frequency Range: 0~500Hz
- Control Signals: 2× analog inputs (0~10V/4~20mA); 4× digital inputs; 2× digital outputs (relay)
- PWM Carrier Frequency: 2kHz~16kHz (adjustable, reduces motor noise) | 0~500Hz range enables high-speed motor operation (e.g., centrifuges); adjustable PWM minimizes acoustic noise in noise-sensitive areas (e.g., packaging lines near offices) |
- Communication & Interface Specifications:
- Data Rate: Up to 12Mbps (PROFINET); 115.2kbps (Modbus RTU)
- Diagnostic Data: Real-time current, voltage, speed, temperature, fault codes | Multi-protocol support eliminates need for gateways; fast data rate enables real-time monitoring in high-throughput systems (e.g., automotive assembly lines) |
| User Interface | - Front Panel: 4-line LCD display; 4 navigation buttons; 3 status LEDs (run, fault, ready)
- Configuration: ABB DriveCom software (via USB/ethernet); front-panel programming
- Memory: 10 user-configurable parameter sets (for quick application switching) | LCD display enables on-site diagnostics without laptops; 10 parameter sets reduce changeover time in multi-product lines (e.g., food packaging) |
- Mechanical & Environmental Specifications:
- Mounting: DIN rail (35mm) or panel mount
- Enclosure: IP20 (integral); IP66 (optional with protective cover)
- Cooling: Natural convection + forced air (for 30A+ models)
- Weight: ~1.8kg | Compact design fits standard control cabinets; optional IP66 enclosure enables direct mounting in dusty/wet areas (e.g., washdown zones) |
| Environmental Ratings | - Operating Temperature: -10℃~+50℃ (ambient); +60℃ with derating
- Storage Temperature: -25℃~+70℃
- Humidity: 5%~95% RH (non-condensing)
- Vibration: 10~50Hz, 0.5mm displacement; 50~150Hz, 1g acceleration
- EMC Compliance: EN 61800-3 (C2 category for industrial environments) | -10℃~+50℃ range suits most indoor industrial environments; EMC compliance minimizes interference with nearby electronics (e.g., PLCs, sensors) |
- Compliance Standards: CE, UL 508C, CSA C22.2 No.14, IEC 61800-5-1, RoHS, ISO 9001 |
- Universal Motor Compatibility: Supports asynchronous (IM) and permanent magnet synchronous (PMSM) motors from 0.75kW to 30kW—eliminates the need for multiple controller types, reducing inventory complexity in facilities with diverse motor fleets.
- Dual Control Modes: V/f control for simple applications (e.g., fans) and sensorless vector control for precision needs (±0.5% speed accuracy)—enables optimal performance across variable-load scenarios (e.g., conveyors with light/heavy packages).
- Comprehensive Protection Suite: Overcurrent, overload, phase loss, and ground fault protection (30mA~1A)—prevents motor damage and enhances operator safety, critical for wet environments (e.g., food processing washdown areas).
- Multi-Protocol Communication: Built-in Modbus RTU + optional PROFINET—seamlessly integrates with PLCs (e.g., ABB AC500) and SCADA systems, enabling centralized monitoring and control in smart factories.
- Energy-Efficient Operation: ≥97% efficiency at 50%~100% load and power factor ≥0.95—reduces energy consumption in continuous-duty applications (e.g., water pump stations), lowering operational costs by 15%~20%.
- User-Friendly Configuration: 4-line LCD, 10 parameter sets, and ABB DriveCom software—simplifies setup and changeovers; on-site diagnostics via front panel eliminates need for laptops during troubleshooting.
- Flexible Mounting Options: DIN rail/panel mount with IP20 integral enclosure (IP66 optional)—adapts to control cabinet or harsh environment installations (e.g., dusty manufacturing floors, outdoor pump enclosures).
- Manufacturing & Assembly: Precise motor control:
- Conveyor Systems: Regulates speed of belt conveyors (0~500Hz) based on production demand—sensorless vector control maintains consistent speed with varying loads (e.g., empty vs. full boxes); 10 parameter sets enable quick line reconfiguration for different products.
- Packaging Machines: Controls film unwind motors and sealing drives—adjustable PWM reduces noise; ground fault protection enhances safety in washdown cycles (e.g., dairy packaging lines).
- Material Handling: Efficient motor management:
- Warehouse Cranes & Hoists: Controls lifting and traversal motors—150% torque at low speed ensures smooth starts/stops with heavy loads; overload protection prevents damage during jams.
- Palletizers: Regulates gripper and conveyor motors—Modbus integration with warehouse PLCs enables synchronized operation with barcode scanners and sorting systems.
- Water & Wastewater: Reliable pump control:
- Centrifugal Pumps: Adjusts speed based on tank level (4~20mA input)—high efficiency reduces energy use in 24/7 operations; phase loss protection prevents pump burnout during utility fluctuations.
- Aeration Blowers: Controls blower motors for wastewater treatment—V/f control optimizes airflow; overheating protection ensures reliability in humid pump houses.
- Building Automation: Comfort & efficiency:
- HVAC Fans: Regulates air handler and exhaust fan speed—0~500Hz range enables precise airflow control; integration with BMS via Modbus optimizes energy use based on occupancy.
- Elevator Door Motors: Controls door opening/closing speed—sensorless vector control ensures smooth operation; overload protection prevents jamming damage.
- System Compatibility (Critical): Verify motor type (IM/PMSM) and power rating (0.75kW~30kW) match controller specifications—overpowering causes overheating and voids warranty; use ABB’s motor-compatibility tool for verification.
- Installation & Wiring Safety:
- Power Wiring: Use copper conductors rated for 75℃ (minimum); torque terminals to 1.5Nm (power) and 0.5Nm (control) to prevent overheating—undersized wires cause voltage drop and inaccurate current sensing.
- Grounding: Connect PE terminal to dedicated protective ground (resistance ≤1Ω) using 4mm² cable—shared grounding with non-motor equipment increases EMC interference risk.
- Environmental Protection: For IP20 models, install only in clean, dry control cabinets (ambient temp <50℃); use IP66 cover in dusty/wet areas (e.g., food processing washdown zones) to prevent corrosion.
-

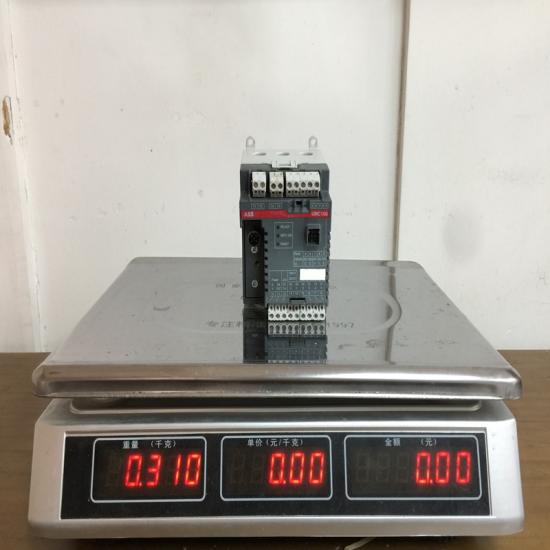

The structure and details of the product：
