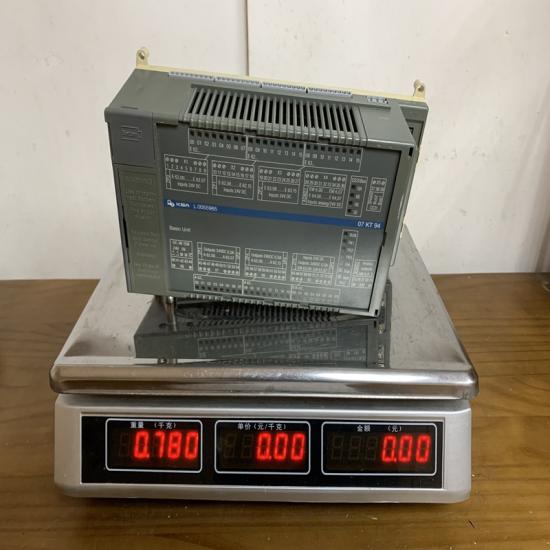

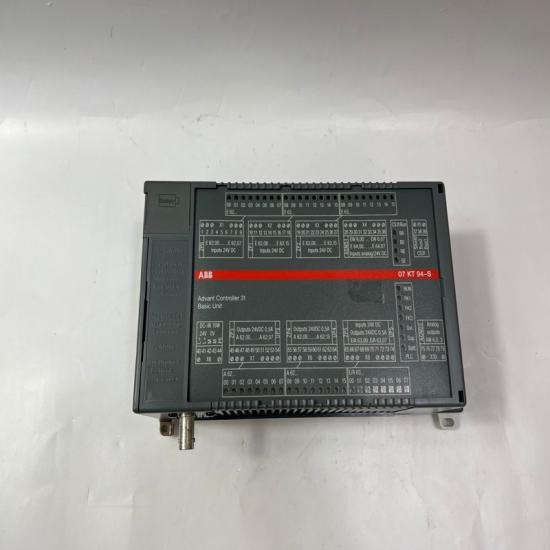

ABB 07KT94 Controller Module

1. Key Parameters

• Product Model: 07KT94
• Product Series: ABB 07KT Series Mechanical Monitoring Modules (Vibration & Rotational Parameter Protection)
• Core Function: Acquires and analyzes vibration signals, bearing condition data, and speed measurements; processes mechanical parameters for fault detection; transmits analyzed data to 07KT CPUs via backplane bus; triggers alarms/trips based on configurable thresholds; supports vibration waveform capture for diagnostics
• Monitoring & Measurement Specifications:

  Parameter	Details	Performance Metrics
  Vibration Inputs	- Channels: 4×analog inputs (ICP®/IEPE compatible, 100mV/g sensitivity) - Frequency Range: 0.1Hz~10kHz (covers sub-sonic to high-frequency vibration) - Dynamic Range: 80dB (enables detection of small amplitude changes) - Sampling Rate: 25.6kHz per channel (for high-resolution waveform analysis)	High-frequency sampling captures critical vibration harmonics (e.g., bearing defect frequencies 2~10kHz) that indicate early wear, enabling predictive maintenance
  Bearing & Speed Monitoring	- Bearing Condition: 4×demodulated vibration inputs (for bearing fault detection) - Speed Inputs: 2×pulse inputs (magnetic pickup or encoder, 0~20,000 RPM) - Speed Accuracy: ±0.1 RPM (at 1,000 RPM) - Measurement Parameters: RMS velocity (0~100mm/s), peak acceleration (0~100g), displacement (0~500μm)	Demodulated vibration analysis detects bearing faults (e.g., inner/outer race defects) months before failure; accurate speed measurement identifies imbalance or resonance issues
  Data Processing & Outputs	- Analysis Features: FFT spectrum (up to 400 lines), trend analysis, alarm/trip logic - Alarm Levels: 2 programmable thresholds per channel (pre-alarm, trip) - Communication: ABB proprietary backplane bus (compatible with 07KT31 CPU) - Waveform Capture: 1024-point samples per channel (triggered by alarms)	FFT spectrum analysis identifies specific fault types (e.g., 2×running speed vibration indicates misalignment); waveform capture enables post-fault diagnostics

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 220mm (D) (rack-mount) - Mounting Type: ABB 07KT series backplane rack (35mm DIN rail compatible via adapter) - Housing Material: EMI-shielded aluminum alloy (UL 94 V0) - Weight: Approximately 750g - LED Indicators: 12 LEDs (power, bus, channel status, alarms)	EMI shielding prevents interference from electrical noise (e.g., VFDs); aluminum housing dissipates heat from high-speed processing components
  Power & Environmental Ratings	- Power Supply: 24V DC (18~30V DC, 8W max, via backplane) - Operating Temperature Range: -10℃~+60℃ (14℉~140℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6)	Wide temperature range ensures operation in harsh industrial environments (e.g., turbine enclosures, compressor rooms); 24V DC power compatibility with standard control systems

• Compliance Standards: CE, RoHS, ISO 10816 (machinery vibration), API 670 (machinery protection systems), IEC 61508 SIL 2, UL 508, CSA C22.2 No.14

2. Key Features

• High-Frequency Vibration Analysis: 4 channels with 25.6kHz sampling and 0.1Hz~10kHz frequency range—captures high-frequency bearing fault signals (e.g., 5kHz inner race defects) that standard monitoring systems miss, enabling early intervention before catastrophic failure.
• Bearing Condition Monitoring: Demodulated vibration analysis detects subtle bearing degradation (e.g., rolling element defects) by isolating high-frequency components—provides up to 6 months advance warning of bearing failure, reducing unplanned downtime by 40%.
• FFT Spectrum & Trend Analysis: Built-in FFT processing (400 lines) identifies specific mechanical faults (misalignment: 2×running speed; imbalance: 1×running speed; resonance: natural frequency)—enables precise diagnosis without external analysis tools.
• Waveform Capture on Alarm: Triggers 1024-point waveform recording when thresholds are exceeded—captures transient events (e.g., vibration spikes during startup) for post-fault analysis, accelerating root-cause identification.
• EMI-Shielded Aluminum Housing: Protects sensitive vibration measurement circuits from electromagnetic interference (EMI) in industrial environments (e.g., near large motors or VFDs)—ensures measurement accuracy (±1% of reading) even in noisy electrical environments.
• Seamless Integration with 07KT Systems: Communicates with 07KT31 CPU via backplane bus—combines mechanical data (vibration, speed) with electrical parameters (current, temperature) for holistic machinery health assessment, avoiding single-parameter blind spots.
• SIL 2 Functional Safety Compliance: IEC 61508 SIL 2 certification ensures reliable alarm/trip logic—suitable for safety-critical applications (e.g., turbine overspeed protection) where false or missed trips could cause equipment damage or safety risks.

3. Application Fields

• Rotating Machinery Protection: Primary use for motors, generators, and turbines:
  • Industrial Motors (100kW~10MW): Monitors 4 bearing positions (horizontal/vertical vibrations) and motor speed—detects misalignment (2×speed vibration), rotor imbalance (1×speed), and bearing wear (demodulated high frequencies), triggering maintenance before failure.
  • Power Generators (500kVA~50MVA): Tracks stator/rotor vibration, bearing condition, and rotational speed—identifies issues like generator rotor rub (high 1×speed vibration) or exciter bearing defects, complying with ISO 8528 generator standards.
• Turbine & Compressor Monitoring: Safeguarding high-speed equipment:
  • Steam/Gas Turbines: Analyzes vibration at turbine bearings, gearbox input/output shafts, and generator coupling—detects blade passing frequency harmonics (indicating blade damage) and triggers shutdown for overspeed (>110% rated) or excessive vibration (>25mm/s).
  • Centrifugal Compressors: Monitors impeller vibration, thrust bearing condition, and rotational speed—identifies surge conditions (vibration spikes) and bearing degradation, preventing catastrophic failure in oil & gas or chemical processing applications.
• Critical Infrastructure Equipment: Ensuring reliability in essential services:
  • Water Treatment Pumps: Tracks pump bearing vibration and motor speed—detects cavitation (broadband vibration) or impeller wear, preventing unplanned shutdowns that disrupt water supply.
  • Data Center Cooling Fans: Monitors fan bearing condition and rotational speed—predicts bearing failure (via demodulated vibration) and triggers fan replacement during scheduled maintenance, avoiding cooling system outages.
• Heavy Industry Machinery: Protecting large equipment:
  • Mining Crushers & Mills: Analyzes vibration in crusher bearings and mill trunnions—detects liner wear (vibration amplitude increase) or gear mesh defects (specific frequency harmonics), reducing maintenance costs by 30%.
  • Steel Rolling Mills: Monitors roll stand vibration and motor speed—identifies roll imbalance (causing product defects) and bearing degradation, ensuring continuous production and product quality.

The structure and details of the product：
