ABB 07KP90 Communications Processor

1. Key Parameters

• Product Model: 07KP90
• Product Series: ABB 07KP Series Communications Processors (Industrial Protection System Networking, Protocol Conversion)
• Core Function: Enables communication between 07KT/07KR protection systems and SCADA/DCS platforms; converts between industrial protocols (Modbus, IEC 61850, Profibus); aggregates real-time data (current, voltage, fault status); supports remote configuration of connected devices; provides cybersecurity features (firewall, access control)
• Communication & Processing Specifications:

  Parameter	Details	Performance Metrics
  Protocol Support	- Primary Protocols: IEC 61850 MMS/GOOSE, Modbus TCP/RTU, Profibus DP/PA - Protocol Conversion: Bidirectional translation between IEC 61850 and Modbus/Profibus - Data Mapping: Configurable mapping of 10,000+ data points (analog values, statuses, commands) - GOOSE Messaging: Supports 100+ GOOSE datasets (peer-to-peer communication, <1ms latency)	Enables integration of legacy systems (Modbus) with modern smart grids (IEC 61850); GOOSE messaging ensures fast fault coordination between protection devices
  Network Interfaces	- Ethernet Ports: 4×10/100Mbps (2×for upstream SCADA, 2×for downstream protection devices) - Serial Ports: 2×RS485 (Modbus RTU/Profibus DP, isolated, baud rate: 9600~115200bps) - Expansion Slot: 1×for fiber optic module (optional, 100Mbps, multi-mode/single-mode) - Network Redundancy: Support for PRP/HSR (IEC 62439-3) for zero-loss redundancy	4 Ethernet ports enable segmentation of networks (e.g., separate SCADA and protection networks); PRP/HSR redundancy ensures <50ms failover, critical for utility applications
  Processing & Data Management	- CPU: 32-bit industrial processor (200MHz) - Memory: 512MB RAM, 2GB flash storage (for logs, configurations) - Data Refresh Rate: 10ms (for real-time values), 1s (for historical data) - Logging: Stores 10,000+ event logs (timestamped, with priority levels)	Fast processing handles 10,000+ data points without latency; 2GB storage enables local caching of historical data during SCADA outages

• Mechanical & Environmental Specifications:

  Parameter	Details	Performance Metrics
  Mechanical Design	- Dimensions: 100mm (W) × 160mm (H) × 220mm (D) (rack-mount) - Mounting Type: 35mm DIN rail (EN 60715) or ABB 07KT/07KR series rack - Housing Material: EMI-shielded aluminum alloy (UL 94 V0, flame-retardant) - Weight: Approximately 800g - LED Indicators: 12 LEDs (power, network status, protocol activity, faults)	EMI shielding prevents interference from MV/LV electrical fields; DIN rail mounting simplifies integration into standard control cabinets
  Power & Environmental Ratings	- Power Supply: 24V DC (18~30V DC, 12W max, redundant input) - Operating Temperature Range: -20℃~+65℃ (-4℉~149℉) - Storage Temperature Range: -40℃~+85℃ (-40℉~185℉) - Humidity Tolerance: 5%~95% RH (non-condensing, 40℃) - Vibration Resistance: 10~500Hz, 1g acceleration (IEC 60068-2-6)	Redundant power input ensures operation during single supply failure; wide temperature range suits harsh industrial environments (e.g., outdoor substations)

• Compliance & Cybersecurity:
  • Standards: CE, RoHS, IEC 61850-3/-5 (communication), IEC 62443 (cybersecurity), UL 508, CSA C22.2 No.14
  • Cybersecurity: Password-protected access, role-based permissions, firmware signature verification, support for VPN/tunneling
  • EMC Compliance: EN 61326-3-1 (immunity to industrial noise)

2. Key Features

• Multi-Protocol Translation: Supports IEC 61850, Modbus, and Profibus with bidirectional conversion—enables seamless communication between modern smart grid systems (IEC 61850) and legacy industrial equipment (Modbus/Profibus), eliminating the need for costly system upgrades.
• High-Speed GOOSE Messaging: Facilitates peer-to-peer communication between protection devices with <1ms latency—enables fast fault coordination (e.g., tripping adjacent breakers) in MV/LV networks, reducing fault clearing time and minimizing equipment damage.
• Redundant Networking (PRP/HSR): Supports IEC 62439-3 PRP/HSR redundancy protocols—ensures zero data loss during network failures, critical for utility and critical infrastructure where communication downtime could lead to extended outages.
• Cybersecurity Compliance (IEC 62443): Implements role-based access control, password protection, and firmware verification—protects against unauthorized access or tampering, complying with industrial cybersecurity standards and preventing malicious disruption of electrical systems.
• Scalable Data Handling: Manages 10,000+ data points with 10ms refresh rate—aggregates data from multiple 07KT/07KR devices (e.g., transformers, motors, switchgear) and presents it to SCADA/DCS systems in a unified format, simplifying monitoring and control.
• Redundant Power Input: Dual 24V DC power inputs with automatic failover—ensures uninterrupted communication even if one power supply fails (e.g., during UPS switchover), maintaining visibility of protection system status.
• Fiber Optic Expansion: Optional fiber optic module extends communication distance (up to 2km multi-mode, 20km single-mode)—enables secure data transmission between remote locations (e.g., substation and control center) without EMI interference.

3. Application Fields

• Protection System Networking: Primary use for connecting 07KT/07KR systems to automation platforms:
  • MV/LV Substations: Links 07KR91 protection CPUs (transformer/motor protection) to utility SCADA systems—converts IEC 61850 data to Modbus for legacy SCADA, enabling remote monitoring of fault status, current/voltage levels, and breaker positions.
  • Industrial Electrical Networks: Connects 07KT31 motor protection systems in manufacturing plants to DCS platforms (e.g., ABB 800xA)—aggregates data from multiple motor control centers (MCCs) and provides a unified view of electrical system health to operators.
• Smart Grid Integration: Supporting modern grid infrastructure:
  • Distribution Automation: Enables 07KR series protection relays in 10kV~35kV distribution networks to communicate with smart grid platforms via IEC 61850—facilitates remote fault location, automatic feeder reconfiguration, and demand response management.
  • Renewable Energy Parks: Integrates protection systems for solar inverters, wind turbine transformers, and battery storage into grid management systems—converts inverter data (Modbus) to IEC 61850 for utility monitoring, ensuring compliance with grid codes (e.g., IEEE 1547).
• Critical Infrastructure Monitoring: Ensuring reliable communication:
  • Data Center Electrical Systems: Connects MV switchgear protection (07KR) and UPS monitoring systems to data center BMS—provides real-time power quality data (voltage sags, harmonics) and enables remote shutdown coordination during emergencies.
  • Hospital/Healthcare Facilities: Links generator protection systems, main switchgear, and critical load monitoring to facility management systems—ensures continuous visibility of electrical system status, complying with NFPA 99 safety standards.
• Industrial Plant Integration: Supporting cross-system communication:
  • Oil & Gas Refineries: Connects electrical protection systems (transformers, motors) with process control DCS—enables coordinated shutdowns (e.g., tripping pumps if electrical faults occur) and provides electrical data for process optimization.
  • Mining Operations: Bridges underground MV protection relays (07KR) with surface SCADA systems via fiber optic expansion—overcomes EMI challenges in mining environments and ensures reliable communication for remote equipment monitoring.

4. Precautions

• Protocol Configuration (Critical): Ensure correct protocol mapping between connected devices (e.g., 07KR91 IEC 61850 to SCADA Modbus)—incorrect mapping leads to data corruption or missing values; use ABB’s Communication Configurator tool to validate mappings before deployment.
• Installation & Network Safety:
  • Network Segmentation: Separate upstream SCADA and downstream protection networks using dedicated Ethernet ports—prevents SCADA network traffic from overwhelming protection communication (e.g., GOOSE messages), ensuring fast fault response.
  • Grounding & Shielding: Connect the processor’s protective earth (PE) terminal to system ground (resistance ≤1Ω) and ground Ethernet/fiber shields at both ends—reduces EMI interference and ensures reliable communication in high-voltage environments.
  • Redundancy Setup: Configure PRP/HSR redundancy correctly (identical settings on both network paths)—misconfigured redundancy leads to data loss during network failures; test failover manually after setup to verify operation.
• Operation & Maintenance:
  • Cybersecurity Updates: Regularly update firmware to address security vulnerabilities—ABB releases quarterly security patches; enable automatic firmware signature verification to prevent installation of unauthorized software.
  • 定期检查: Perform monthly inspections for:
    • Network connectivity (verify all Ethernet/serial links are active via LED indicators)
    • CPU load (ensure <70% utilization to prevent data latency)
    • Event logs (review communication errors or failed authentication attempts to identify network issues or cyber threats)
    • Redundant power status (confirm both power inputs are active and balanced)
  • Data Backup: Back up configuration files (protocol mappings, network settings) monthly—store backups offline in encrypted format to enable fast recovery after hardware failure or cyber incidents.
• Environmental Limitations:
  • Temperature & Humidity: Avoid operation below -20℃ (network performance degrades) or above +65℃ (processor overheats)—install in climate-controlled cabinets in extreme environments (e.g., desert substations, tropical plants).
  • Chemical & Dust Exposure: Use IP54-rated enclosures in corrosive (refineries) or dusty (mining) environments—corrosion of aluminum housing reduces EMI shielding, while dust accumulation blocks ventilation, causing overheating.
• Replacement & Spare Parts:
  • Genuine ABB Components: Use only genuine 07KP90 processors and ABB-approved accessories (fiber modules)—non-genuine units lack IEC 61850 compliance and cybersecurity features, risking data breaches or communication failures; verify authenticity via ABB’s serial number lookup tool.
  • Spare Inventory: Maintain 1 spare processor per 10 critical communication nodes (e.g., substation gateways, plant data concentrators)—critical for minimizing downtime (each hour of communication loss increases unplanned outage risk by 20%); store spares in anti-static packaging at 15℃~25℃

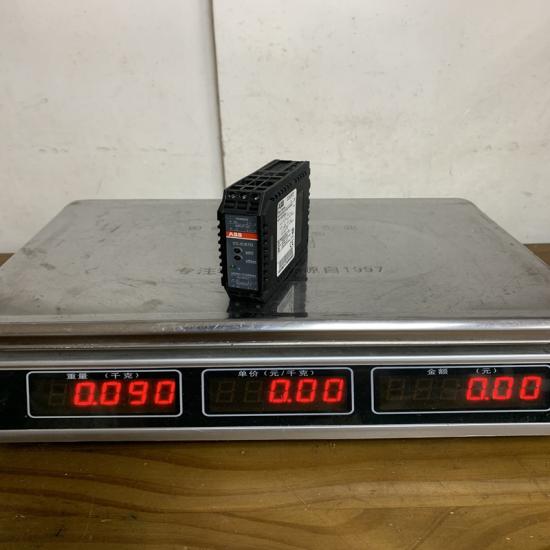

The structure and details of the product：
